High-Efficiency Plastic Washing Lines
Transform plastic waste into high-purity, reusable raw materials. Our PET, HDPE, and Film washing systems deliver exceptional performance and reliability.
Get a QuoteWhy Choose Our Washing Lines?
Modular Design
Customize your washing line to perfectly fit your input materials and production requirements.
Low Energy Consumption
Optimized motors and heating systems reduce operating costs and minimize environmental impact.
Durable & Reliable
Constructed with high-quality, wear-resistant materials for long-lasting and stable operation.
Superior Cleaning
Advanced friction washing and rinsing technology ensures low moisture content and high-purity flakes.
Our Proven Washing Process
1. Debaling & Crushing
Bales are broken down and plastic is shredded into small, uniform flakes.
2. Floating & Washing
Flakes are washed to remove contaminants such as dirt, sand, and labels.
3. Hot & Friction Wash
Intensive hot washing removes glue and oil, followed by high-speed friction cleaning.
4. Dewatering & Drying
Mechanical and thermal drying reduce moisture content to below 1%.
5. Packing
Clean, dry flakes are collected and packed for reuse.
Advanced Features & Technical Specifications
Heavy-Duty Crusher/Shredder
Equipped with a V-type rotor design for efficient, low-noise size reduction of rigid plastics and films.
High-Speed Friction Washer
Rotors operating at over 1,000 RPM effectively scrub materials to remove even the most stubborn contaminants.
Sink-Float Separation Tank
Efficiently separates polyolefins (PP/PE) from sinking materials like PET, ensuring high material purity.
PLC Control System
Centralized Siemens PLC system with a touchscreen interface for easy operation and monitoring of the entire line.
Technical Parameter Table (Example for PET 1000 kg/h)
| Parameter | Value |
|---|---|
| Model | PET-WASH-1000 |
| Capacity | 1000-1200 kg/hour |
| Applicable Materials | PET Bottles, PET Flakes |
| Final Product Size | 12-14 mm (customizable) |
| Final Moisture Content | < 1% |
| PVC Content | < 100 ppm |
| Total Installed Power | Approx. 215 kW |
| Water Consumption | 1-2 m³/ton (with circulation system) |
| Footprint (L x W x H) | Approx. 90m x 8m x 6m |
Machine Gallery & Live Operation
Frequently Asked Questions
What types of plastic can this line process?
Our plastic washing lines are modular and can process a wide range of materials, including rigid plastics like PET (bottles) and HDPE (containers), as well as soft plastics like LDPE/LLDPE film and PP woven bags. Each line is optimized for the material's unique characteristics.
What is the final quality of the recycled flakes?
The goal is to produce high-purity, contamination-free flakes suitable for pelletizing or direct use in manufacturing. For PET, we typically achieve a final moisture content of under 1%, and PVC content below 100ppm, ensuring suitability for producing food-grade rPET (with additional processing) or high-quality polyester fiber.
How much space and power are required?
The footprint and power requirements vary based on the capacity (e.g., 500 kg/h vs. 3000 kg/h) and specific components. A standard 1000 kg/h PET bottle washing line might require approximately 90 meters in length and have an installed power of around 215 kW. We provide a detailed layout and power analysis with each proposal.
Do you provide installation and training services?
Yes, we offer comprehensive services including overseas installation, commissioning, and operational training for your staff. Our engineers will ensure the line runs smoothly, and your team is fully trained to manage and maintain the system for optimal performance.

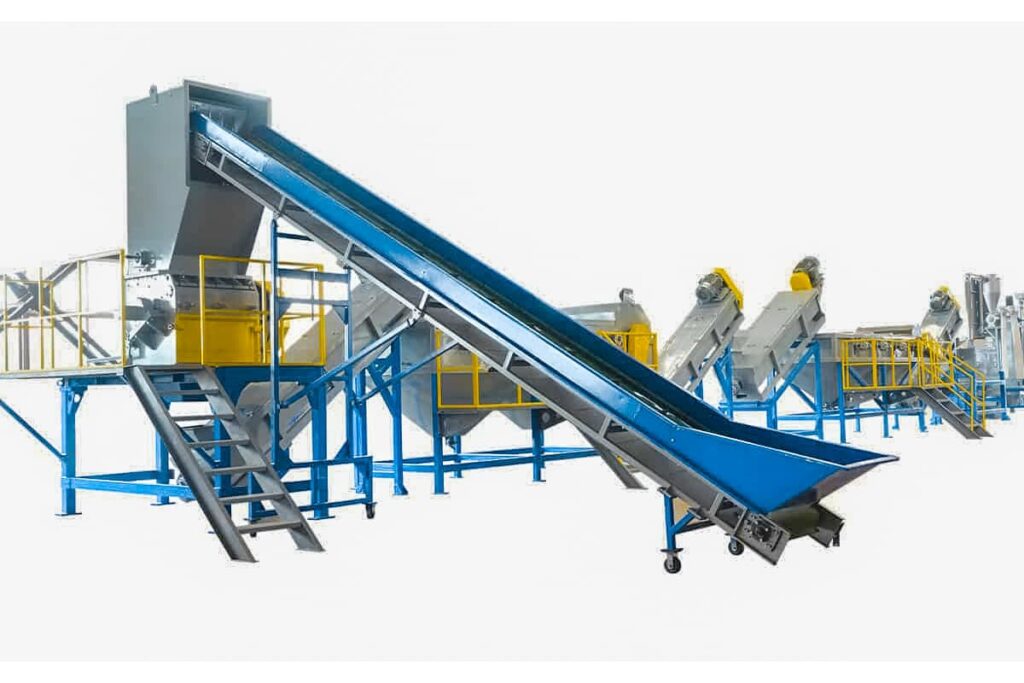

Rigid Plastic Washing Recycling Line
An advanced, turnkey washing and recycling line for rigid PE/PP plastics. Features multi-stage shredding, high-friction washing, separation, and drying to produce >99% pure flakes. The ideal solution for converting plastic waste into a high-value commodity.

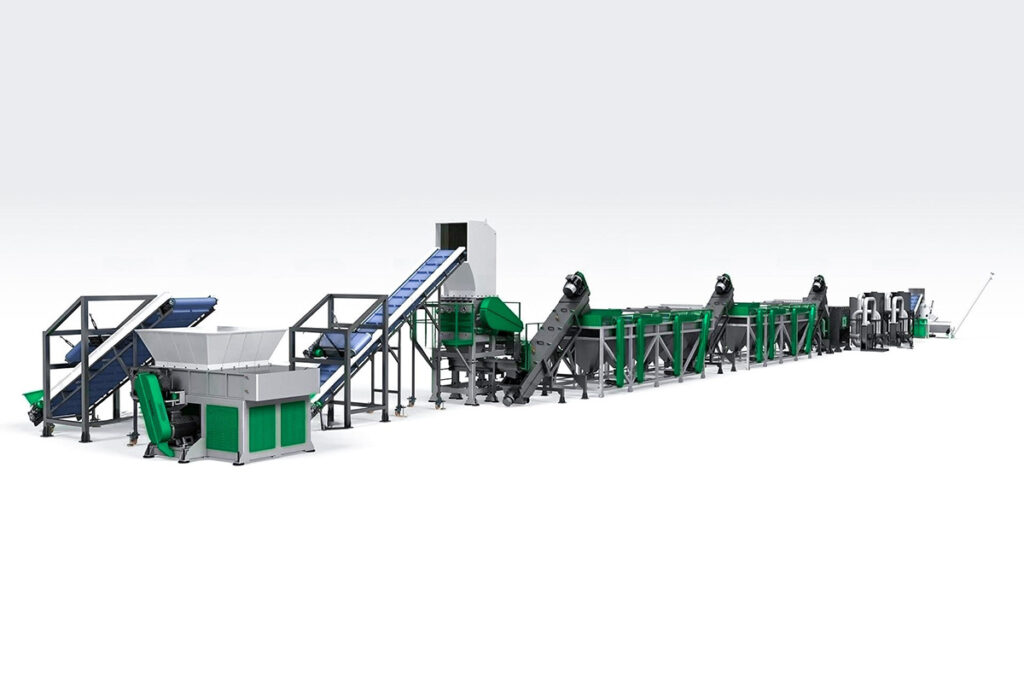

Shredding Densifying Recycling Line for Plastic Film
Drastically reduce transportation costs and turn low-value plastic film waste into a high-density, profitable raw material. Our all-in-one Shredding & Densifying Line is the ultimate solution for efficient plastic recycling. Discover the process and technical specs inside.

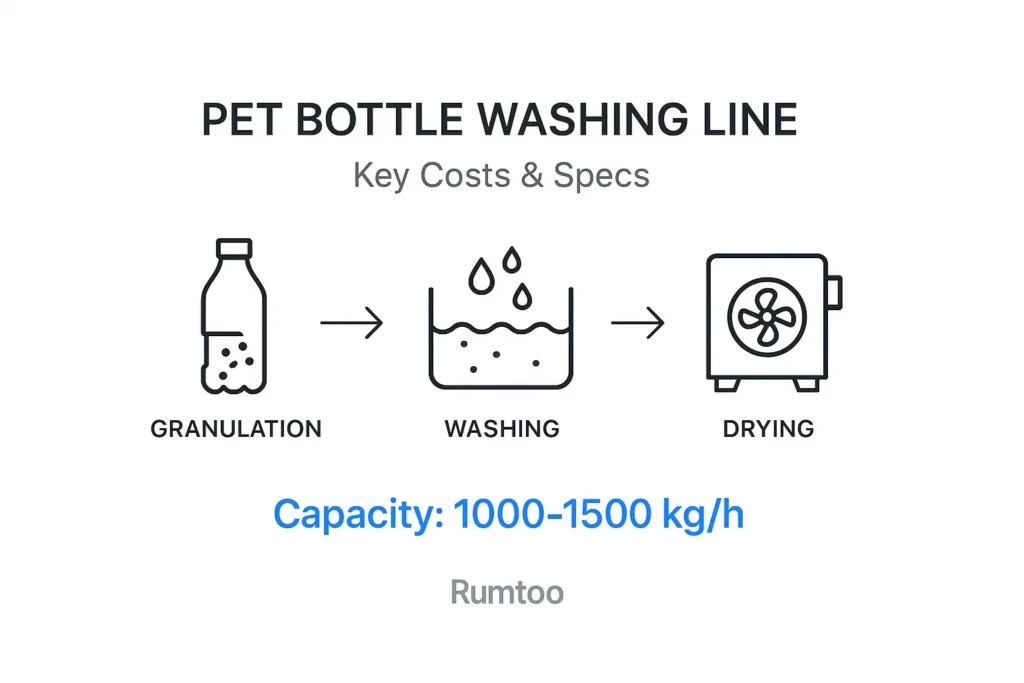

1000-1500 kg/h Bottle Washing Line BOM Cost
Considering a 1000-1500 kg/h PET bottle washing line? This Rumtoo article provides a complete Bill of Materials (BOM) cost sheet, detailing individual machinery prices and specifications to help you plan your plastic recycling investment effectively.

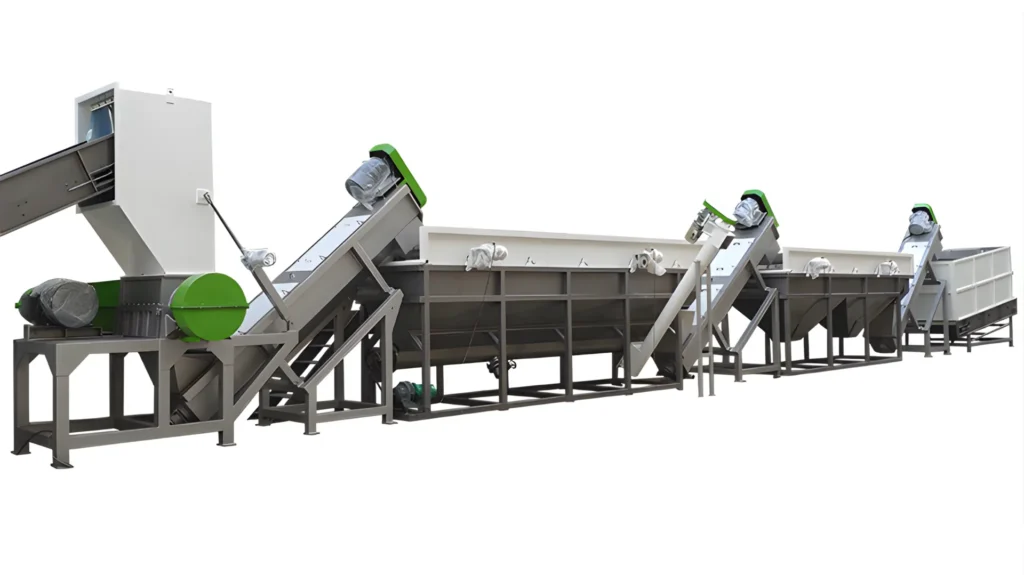

Plastic Film Washing Line
Our comprehensive Plastic Film Washing Line offers a sustainable and highly efficient solution for recycling polypropylene (PP), polyethylene (PE), and other plastic films. From initial shredding and granulation through intensive washing, separation, and drying, to final pelletizing, our turnkey system converts problematic waste into valuable, reusable plastic pellets. Ideal for businesses aiming for eco-friendly operations and profitable recycling.

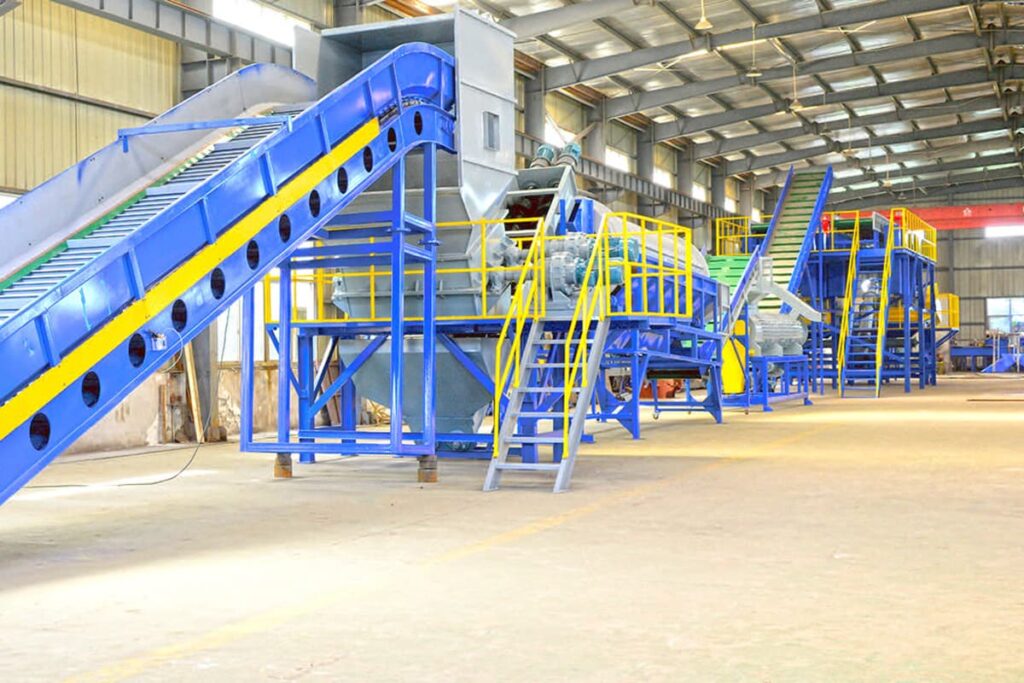

PET Bottle Washing Line
Kickstart or enhance your plastic bottle recycling business with our comprehensive PET bottle washing line. This fully automated, turnkey system efficiently transforms baled PET bottles into pristine PET flakes, ready for market and premium pricing, while championing environmental sustainability.

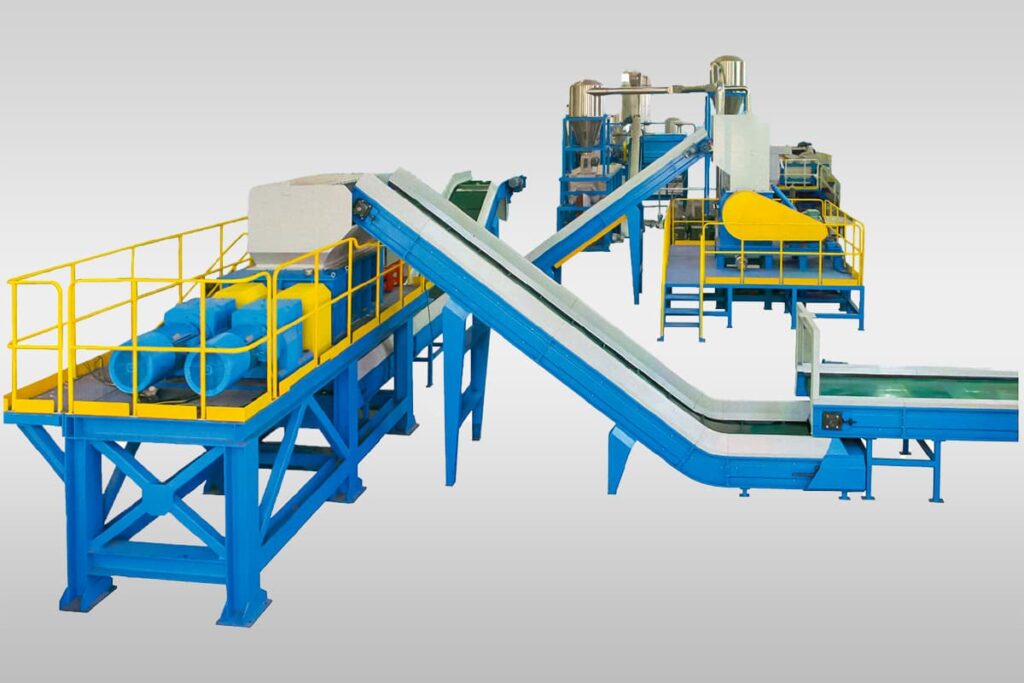

Plastic Recycling Washing Line for PE Film and Fabrics
Plastic Film Learn more about plastic film recycling and its benefits. Non-woven Bag Discover the eco-friendly advantages of non-woven bags. Artificial Grass Explore the sustainability of artificial grass solutions. BOPP Film Understand the recycling process of BOPP films. Mulch Plastic Film Find out how mulch plastic film contributes to agriculture. Woven Bag Learn about the … Continue reading Plastic Recycling Washing Line for PE Film and Fabrics
PP/PE Film Recycling Washing Line
PP/PE Film Recycling Washing Line Every day, a significant amount of plastic is produced on Earth, leading to the serious pollution of our environment. However, this issue can be addressed through the use of plastic recycling machines. These machines, including plastic shredders, granulators, and extrusion machines, enable the reuse of waste plastic and give it … Continue reading PP/PE Film Recycling Washing Line
HDPE And PP Rigid Plastic Shredding Recycling Line
Introducing our cutting-edge HDPE and PP Rigid Plastic Shredding Recycling Line, engineered to efficiently process bulky and difficult-to-handle plastic waste. This comprehensive system converts discarded HDPE and PP items into high-quality, reusable pellets, offering an environmentally sound and cost-effective solution for modern recycling challenges. Enhance your sustainability efforts and reduce operational costs with our innovative technology.
